Measuring Guide For Blinds
Reading sometimes gets distracted. So, watch this video instead
Inside Mount
A. Check window frame depth:
Measure the depth as shown in Figure. The inside mount requires a minimum of 2 inches of depth within the frame. If it’s shorter than 2 inches then Out mount is recommended.
B. Measure the width and height from the inside frame:
Width Measure from two locations, top and bottom. Use the shortest of your three measurements as the working width. Height: Measure your window frame at two locations Left and right. Use the longest of your three measurements for the horizontal blinds.
Outside Mount
A. Measure the outside area that you want to cover. For example, frame to frame.
Important Note
- Inside mount: We will subtract 3mm from the width and 2mm from the height
- Outside mount: We will add 0.5 inches to the width and 1 inch to the height to cover the whole frame
- The fabric will be 2.5 inches shorter than the cassette. This is not a defect, but a manufacturing standard.
- For the Bay window measurements, please contact us through info@betrmotionblinds.com
How To Install Zebra & Roller Blinds
Step 1:
DETERMINE IN-MOUNT OR OUT-MOUNT MATERIAL (WOOD, PVC, DRYWALL, CONCRETE, CEILING)
A. Inside/ceiling mount
(A minimum of 2-inch depth is required or 3 ½ inch depth for flush mount.)
- Use bracket A and position it approximately 5 inches away from the left and right corners of the window.
- Do not touch the bracket with the window frame at the back and mark two different points (make sure there is 1/4 inch of space between the window frame and bracket A for the blind cassette to fit).
- Align both positions perfectly. Use a drill and small screws to install bracket A on both ends.
B. Outside/wall mount
(A minimum of 1 ½ inches of flat wall space is required.)
- Position bracket B roughly 5 inches from the end of the headrail on both sides. Mark the drill positions on both ends of the out-mount window.
- Use long screws and anchors (optional) to install the bracket.
- Take bracket A and combine it with bracket B by rotation motion.
Step 2:
Install the Blinds (Cassette instructions)
- Hang the blind on the front hook of bracket A and slide backward.
- Push the blind upward by putting force on the back of the blind until you hear CLICK!
- To remove it, push the clip upwards
Limited Warranty
For custom-made blinds from Betr Motion Blinds Inc. Three years from the date of purchase, there is a warranty, but what is included?
If you are the product’s original buyer and the product was installed as per our instructions, all of our blinds are guaranteed against manufacturer faults in materials or workmanship.
What is excluded?
Measuring Guide For Blinds
Reading sometimes gets distracted. So, watch this video instead
Inside Mount
A. Check window frame depth:
Measure the depth as shown in Figure. The inside mount requires a minimum of 2 inches of depth within the frame. If it’s shorter than 2 inches then Out mount is recommended.
B. Measure the width and height from the inside frame:
Width Measure from two locations, top and bottom. Use the shortest of your three measurements as the working width. Height: Measure your window frame at two locations Left and right. Use the longest of your three measurements for the horizontal blinds.
Outside Mount
A. Measure the outside area that you want to cover. For example, frame to frame.
Important Note
- Inside mount: We will subtract 3mm from the width and 2mm from the height
- Outside mount: We will add 0.5 inches to the width and 1 inch to the height to cover the whole frame
- The fabric will be 2.5 inches shorter than the cassette. This is not a defect, but a manufacturing standard.
- For the Bay window measurements, please contact us through info@betrmotionblinds.com
How To Install Zebra & Roller Blinds
Step 1:
DETERMINE IN-MOUNT OR OUT-MOUNT MATERIAL (WOOD, PVC, DRYWALL, CONCRETE, CEILING)

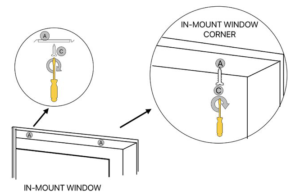

A. Inside/ceiling mount
(A minimum of 2-inch depth is required or 3 ½ inch depth for flush mount.)
- Use bracket A and position it approximately 5 inches away from the left and right corners of the window.
- Do not touch the bracket with the window frame at the back and mark two different points (make sure there is 1/4 inch of space between the window frame and bracket A for the blind cassette to fit).
- Align both positions perfectly. Use a drill and small screws to install bracket A on both ends.

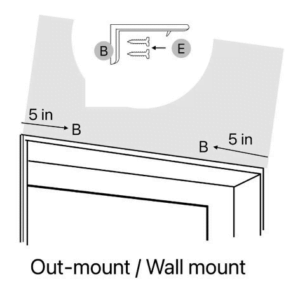

B. Outside/wall mount
(A minimum of 1 ½ inches of flat wall space is required.)
- Position bracket B roughly 5 inches from the end of the headrail on both sides. Mark the drill positions on both ends of the out-mount window.
- Use long screws and anchors (optional) to install the bracket.

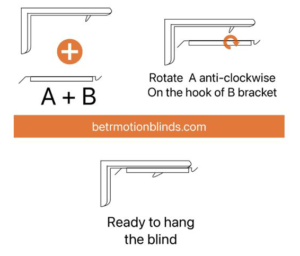

- Take bracket A and combine it with bracket B by rotation motion.

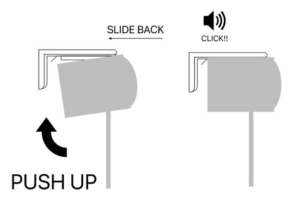

Step 2:
Install the Blinds (Cassette instructions)
- Hang the blind on the front hook of bracket A and slide backward.
- Push the blind upward by putting force on the back of the blind until you hear CLICK!
- To remove it, push the clip upwards
Limited Warranty
For custom-made blinds from Betr Motion Blinds Inc. Three years from the date of purchase, there is a warranty, but what is included?
If you are the product’s original buyer and the product was installed as per our instructions, all of our blinds are guaranteed against manufacturer faults in materials or workmanship.
What is excluded?
- Usual deterioration.
- Customer damages brought on by mishaps, modifications, misuse, exposure to sea air, mistreatment, or harm from animals or insects.
- Damages resulting from removal and reinstallation in the same or any other window or application;
- Failure to follow instructions, such as measurement, installation, cleaning, and maintenance,
Need further assistance?
Hey there, valued customer! If you’re experiencing issues with your window coverings due to a manufacturing defect, please don’t hesitate to get in touch with us. We’re here to help.
You can reach us through various channels:
- Website: www.betrmotionblinds.com/help
- Email: info@betrmotionblinds.com
- Phone: +1 (365) 275-6341
- Hours: Mon-Fri 8 AM to 7 PM (EST) and Sat-Sun 11 AM to 2 PM (EST)
We take pride in the quality of our products and want to ensure that you’re completely satisfied with your purchase. If you need assistance, we promise to respond to your inquiry within 2–3 business days. And for additional support, we offer how-to videos and frequently asked questions on our website.
At Betr Motion Blinds, Inc., we’re committed to providing you with exceptional service and top-notch products. Thank you for choosing us to modify your windows. We’re dedicated to providing you with excellent customer service and high-quality products.
